Semi Electric Walkie Stacker Lifter Lifting 2500mm 1T Straddle Leg
HomeStore

Semi Electric Walkie Stacker Lifter Lifting 2500mm 1T Straddle Leg

Semi Electric Walkie Stacker Lifter Lifting 2500mm 1T Straddle Leg

$1,169.70

Original: $3,899.00

-70%
Semi Electric Walkie Stacker Lifter Lifting 2500mm 1T Straddle Leg—

$3,899.00

$1,169.70

The Story

Brief Dimension:

  • Capacity: 1000kg
  • Load Capacity on Max Height: 1000kg
  • Max Lifting Height: 2500mm
  • Load Center Distance: 600mm
  • Service Weight: 485kg
  • Fork Length: 1150mm
  • Single Fork Width: 100mm
  • Two Forks Outside Width: 210-830mm
  • Lowered Fork Height: 40mm
  • Fixed Leg Length: 1120mm
  • Single Fixed Leg Width: 50mm
  • Inner Width of Two Fixed Legs: 1230mm
  • Outside Width of Fixed Legs: 1330mm
  • Turning Radius: 1350mm
  • Aisle Width for pallets 1200 x 1200 crossways: 2400mm
  • Overall Length: 1800mm
  • Overall Width: 1330mm
  • Extended Mast Height: 3070mm
  • Lowered Mast Height: 1820mm
  • Front Wheel Size, number: 100x26mm, 4
  • Rear Wheel Size, number: 180x50mm, 2
  • Lift Motor Rating: 1.5 kW
  • Lift Motor: DC 12V
  • Charger: 12V/20A
  • Battery voltage/nominal capacity: 12V/120AH
Semi Electric Walkie Stacker Lifter Lifting 2500mm 1T Straddle Leg - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

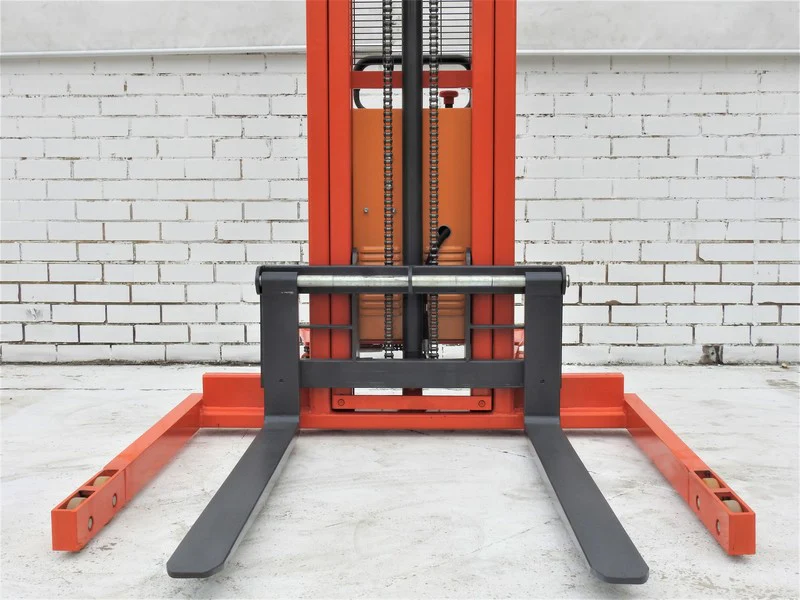

Semi Electric Walkie Stacker Lifter Lifting 2500mm 1T Straddle Leg - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

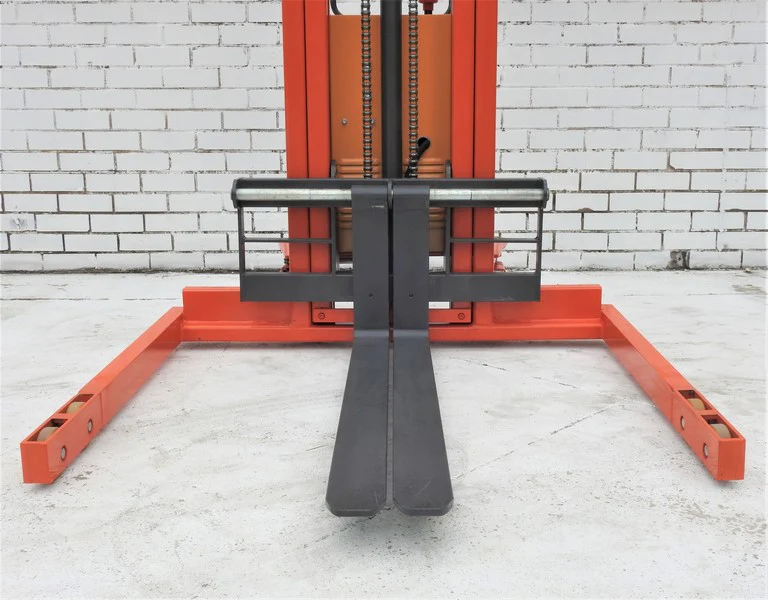

Semi Electric Walkie Stacker Lifter Lifting 2500mm 1T Straddle Leg - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

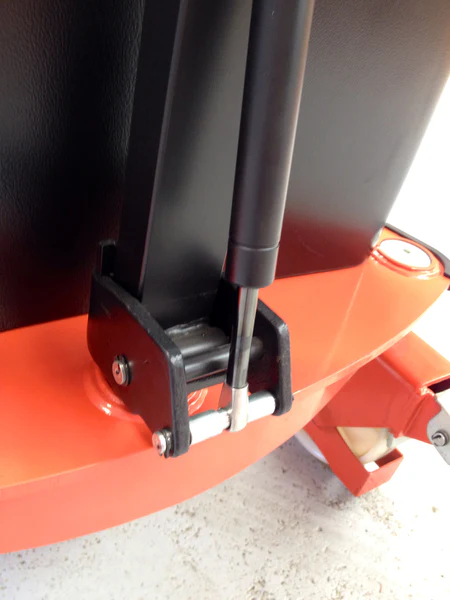

Semi Electric Walkie Stacker Lifter Lifting 2500mm 1T Straddle Leg - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Brief Dimension:

  • Capacity: 1000kg
  • Load Capacity on Max Height: 1000kg
  • Max Lifting Height: 2500mm
  • Load Center Distance: 600mm
  • Service Weight: 485kg
  • Fork Length: 1150mm
  • Single Fork Width: 100mm
  • Two Forks Outside Width: 210-830mm
  • Lowered Fork Height: 40mm
  • Fixed Leg Length: 1120mm
  • Single Fixed Leg Width: 50mm
  • Inner Width of Two Fixed Legs: 1230mm
  • Outside Width of Fixed Legs: 1330mm
  • Turning Radius: 1350mm
  • Aisle Width for pallets 1200 x 1200 crossways: 2400mm
  • Overall Length: 1800mm
  • Overall Width: 1330mm
  • Extended Mast Height: 3070mm
  • Lowered Mast Height: 1820mm
  • Front Wheel Size, number: 100x26mm, 4
  • Rear Wheel Size, number: 180x50mm, 2
  • Lift Motor Rating: 1.5 kW
  • Lift Motor: DC 12V
  • Charger: 12V/20A
  • Battery voltage/nominal capacity: 12V/120AH
