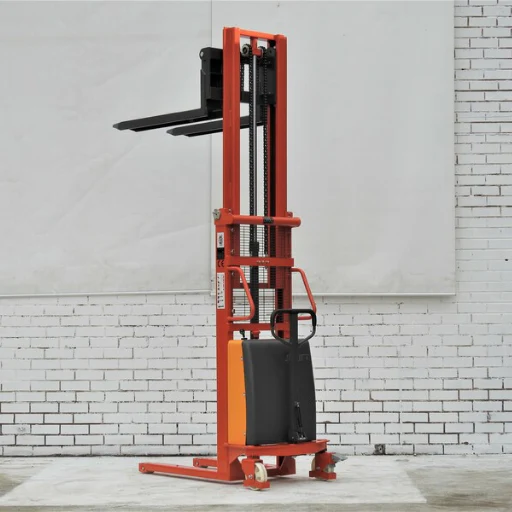

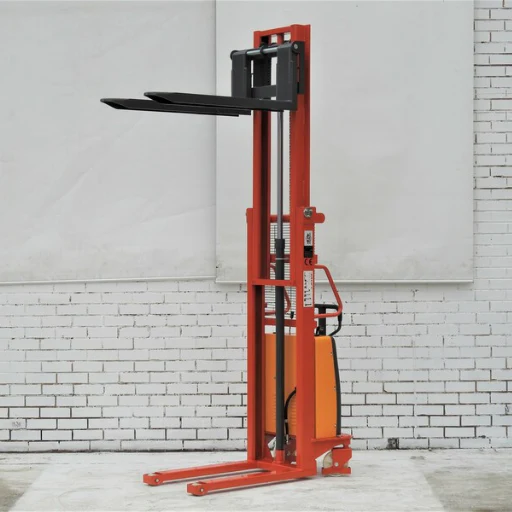

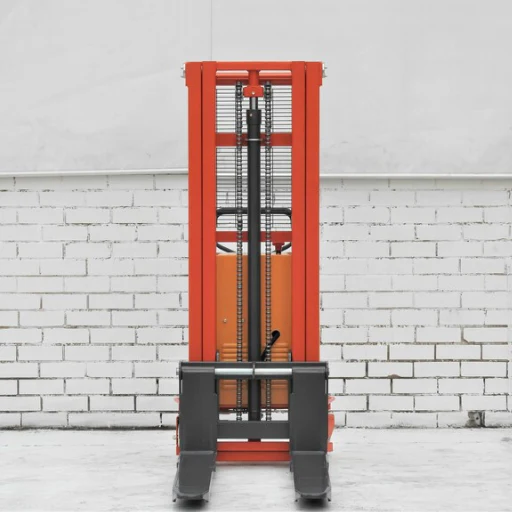

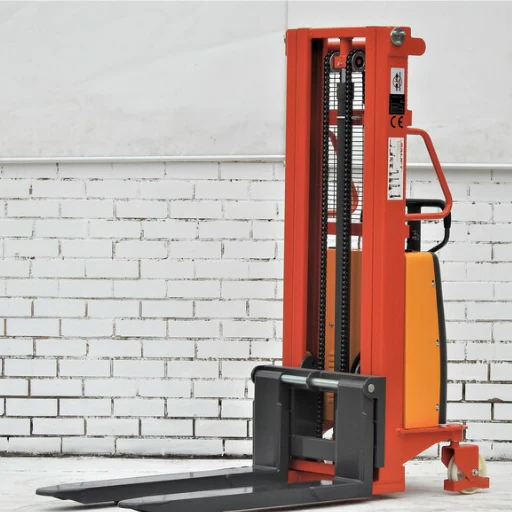

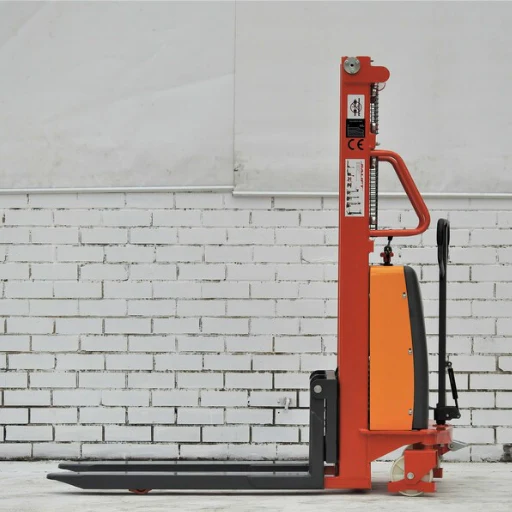

Semi Electric Walkie Stacker Lifter 2.5M Capacity 1T

Semi Electric Walkie Stacker Lifter 2.5M Capacity 1T



Introduction:

Semi-electric pallet stacker is easy to control, and environmental efficiency, which is widely used in overhead cargo and pallet moving and stacking.



Brief Dimension:

•     Load Capacity: 1000kg
•     Load Capacity on max height: 700kg
•     Max Lifting Height: 2500mm
•     Load Center Distance: 600mm
•     Service Weight: 374kg

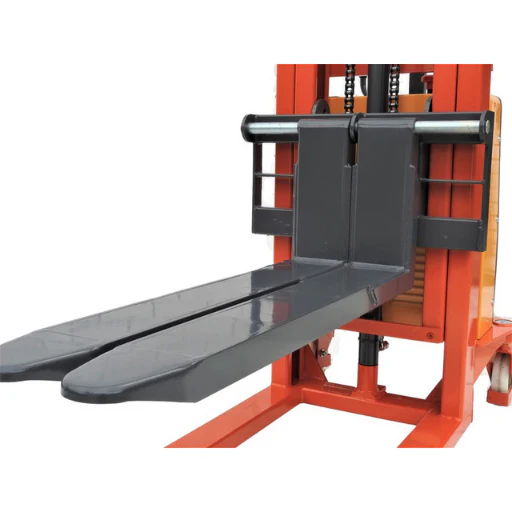

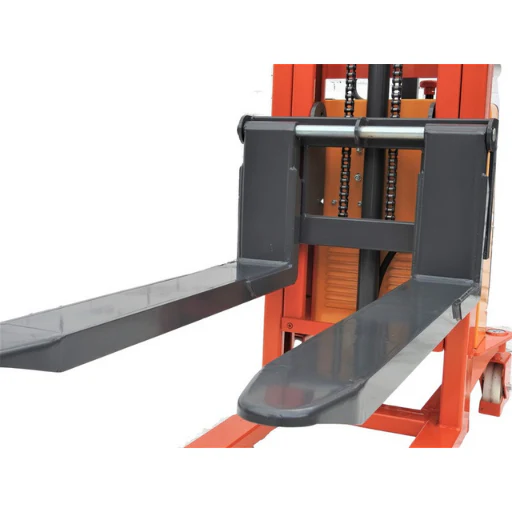

•     Fork Length: 1150mm
•     Single Fork Width: 150mm
•     Overall Fork Width: Standard (640mm)
•     Lowered Fork Height: 85mm
•     Fixed Leg Length: 875mm
•     Single Fixed Leg Width: 100mm
•     Inner width of two fixed legs: 390mm
•     Outer width of two fixed legs: 590mm
•     Turning Radius: 1350mm
•     Overall Length: 1800 (1100Fork)
•     Overall Width: 760mm
•     Extended Mast Height: 3067mm
•     Lowered Mast Height: 1827mm
•     Wheels Type: NL
•     Front Wheel Size, number: 74x70, 2

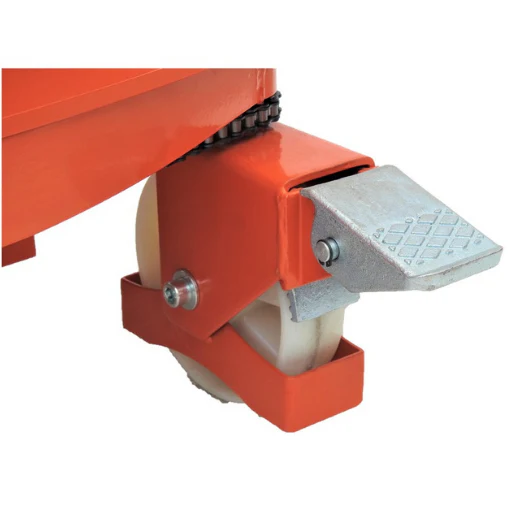

•     Rear Wheel Size, number: 180x50, 2
•     Lift Motor Rating: 1.5 kW
•     Lift Motor: 12V
•     Charger: 12V/20A
•     Battery Voltage/ nominal capacity: 12V/120AH
•     Electric lift and manual push



This standard leg model is used for open pallet, NOT for Australia standard pallet (CHEP).
