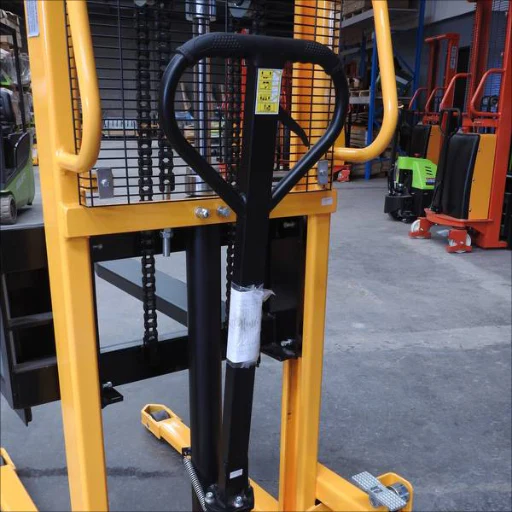

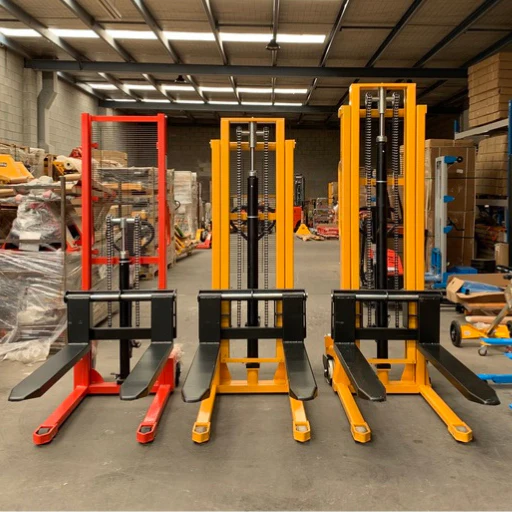

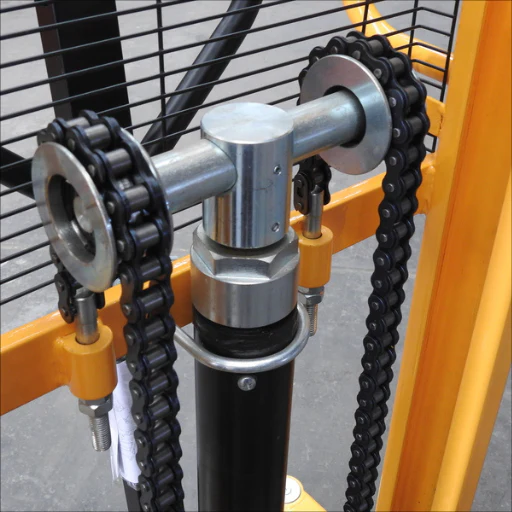

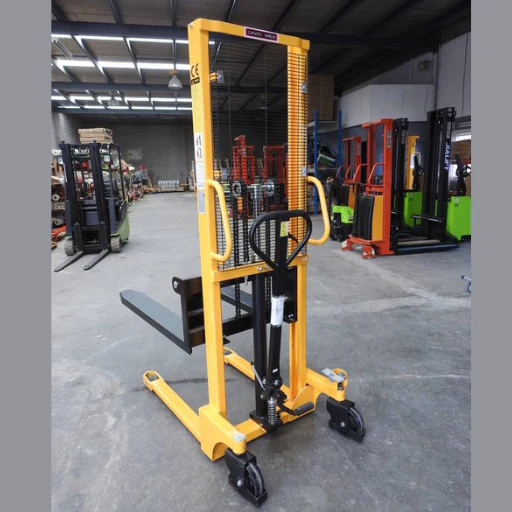

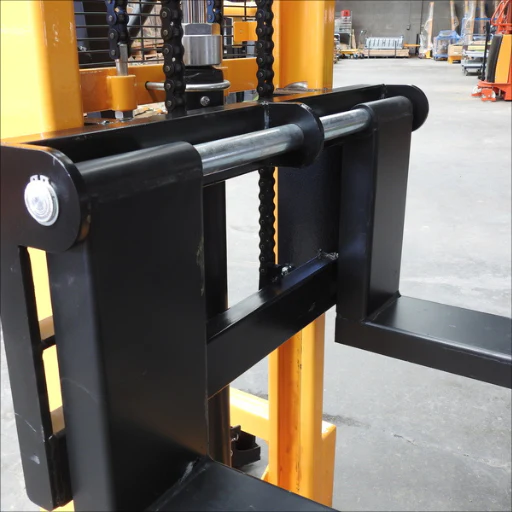

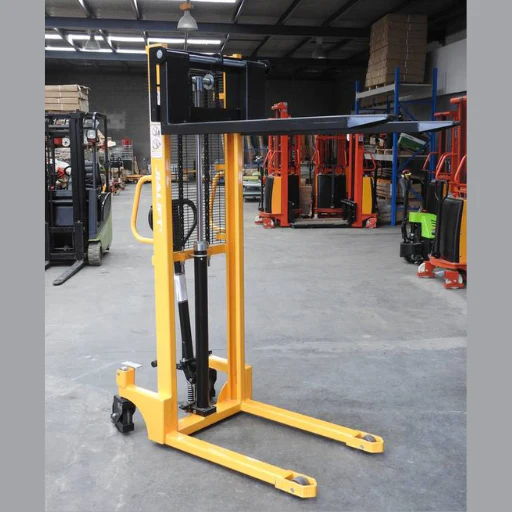

Manual Hand Stacker Lifter Lifting 1600mm Capacity 1T

MANUAL HAND STACKER LIFTER LIFTING 1600MM CAPACITY 1T

Note: This unit legs will not get inside closed pallets (will not go over the timber under pallet)

Introduction:

In today’s demand of supplies and products, it is impossible to do everything manually that is why you need something to help you. Like in warehouses, heavy lifting and time to time movement of products is seen everywhere. Being flexible is not possible for manual operations. Material handling equipment is well known and used by many to help them fulfill task and work more effectively. Stacker Jack is one tool that can help you with your day to day operation.



Main Features:

Best seller for our manual hand stacker. Design to help you with material handling, loading and unloading items up to 1Ton. Suitable use in warehouses, factories, office and other similar places that require heavy lifting. Hand forklift is a high attitude lifting and short distance transportation. Light weight with compact structure with simple operation.



Brief Dimension:

• Load Capacity: 1000kg
• Max Lift Height: 1630mm
• Service Weight: 260kg
• Fork Length: 1150mm
• Adjustable Fork Width: 310-730mm
• Single Fork Width: 150mm
• Min Fork Width: 80mm
• Overall Length: 1730mm
• Overall Width: 780mm
• Overall Height: 2030mm
• Fixed Leg Length: 900mm
• Fixed Leg Outside Width: 670mm
• Fixed Leg Inside Width: 500mm
• Pump Times to Max Height: 98 times
• Tyre type front wheels/rear wheels: PU
• Front Wheel Size, number: 85x60,2
• Rear Wheel Size, number: 185x50,2




NOTE : This Will not work with Chep/lescom closed pallets.



Warranty:

1 Year
