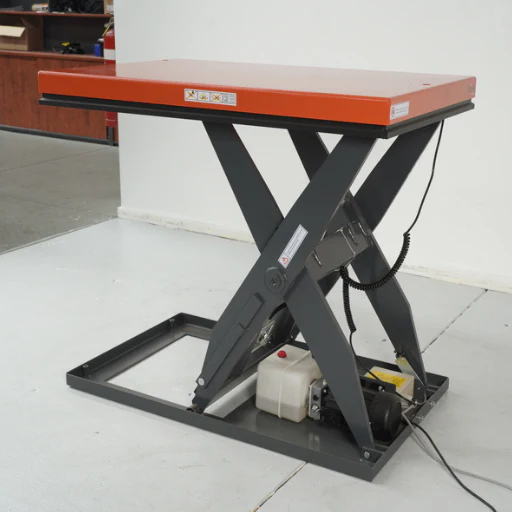

Electric scissor lift table 2t capacity lift height 1010mm

Electric scissor lift table 2t capacity lift height 1010mm



Introduction:

Nothing compares to what a scissor table jack can contribute to increase productivity in a place where heavy lifting is required. This top-notch handling equipment is really a big help in many warehouses and offices to reduce man power. It helps achieve target in the scheduled time and organized things in short period time. It quickly lifts up and lower down things compare doing it manually. It is ideal to use in warehouses, shops, office and factories.



Main Features:

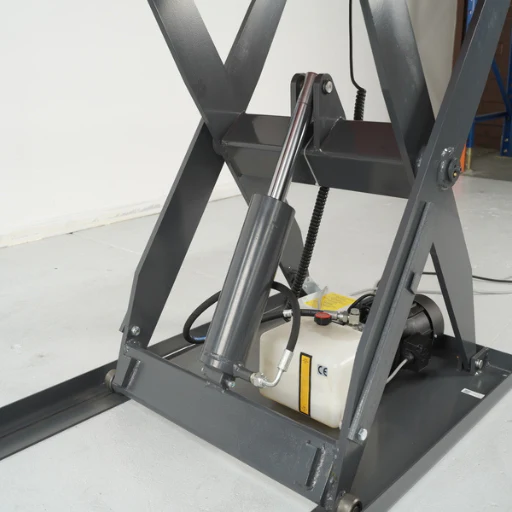

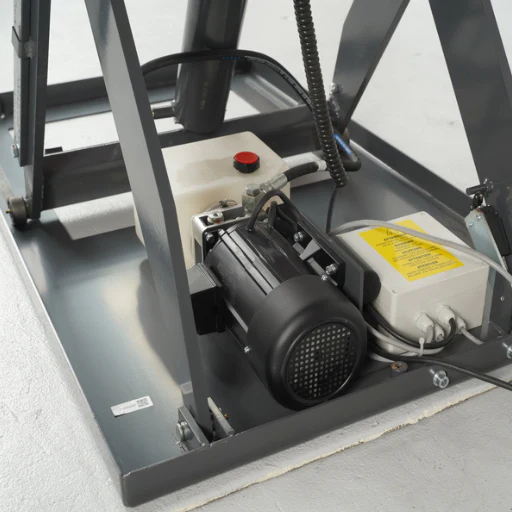

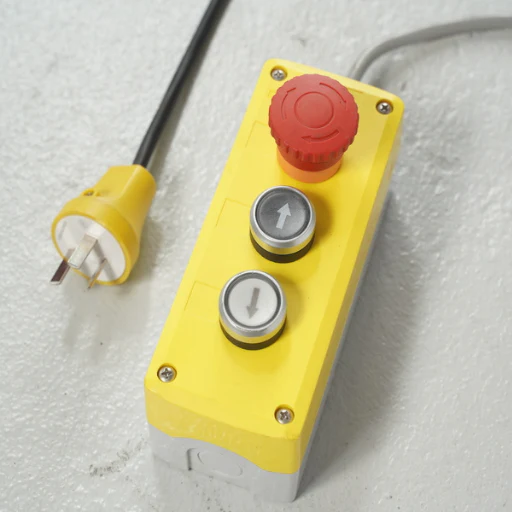

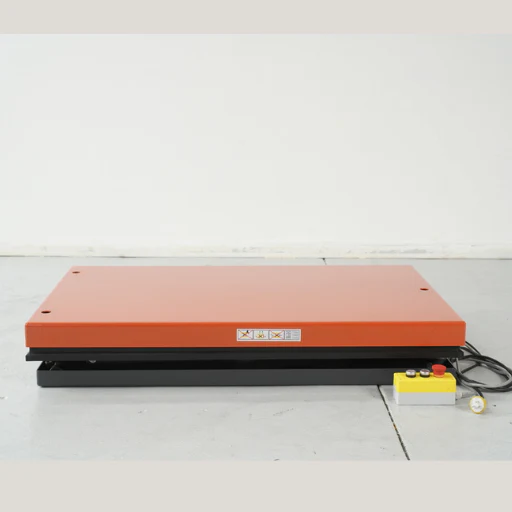

Heavy duty design with larger platform is one many great features of this electric scissor lift table. These tables achieve a low close height, eliminating the need for a pit installation. Upper platform filled with safety perimeter to prevent descent on contact with obstructions. Uses a 24V control box with UP and DOWN button, EMERGENCY STOP. External power pack equipped with a relief valve against overloading and compensated flow valve for control lowering speed. Hose burst safety valve to stop the lift table lowering in case of hose breakage. Removable lifting eyes to facilitate handing and installation of the lift table. Oiless bushing on pivot point. Loading ramp is a standard equipment.



Brief Dimension:

• Loading Capacity: 2000kg
• Minimum Height: 220mm
• Maximum Lifting Height: 1010mm
• Lifting Speed: 40s
• Lower Speed: 30s
• Service Weight: 280kg
• Platform Size: 1300x800mm
• Lift Motor: 0.75kw AC3X380V

• Pump Electric Current: 3L/min
• Oil Tank: 3L



Warranty:

1 Year
