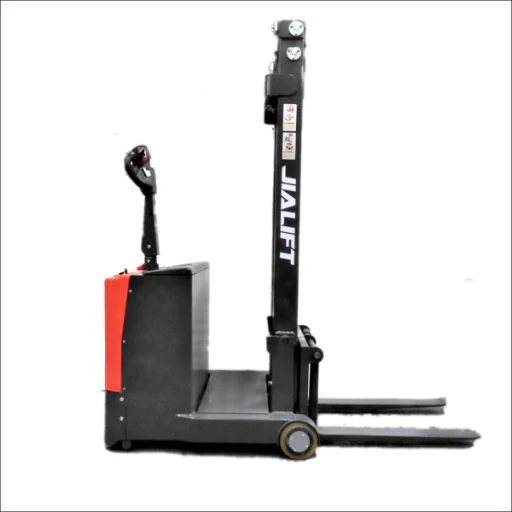

Counterbalance Full Electric Stacker

Counterbalance Full Electric Stacker

A stacker jack is often used for one or more pallet to easily moved even in tight spaces.



Brief Dimension:

•     Drive Unit: Electrics
•     Operator Type: Walking Behind
•     Rated Capacity: 700kg
•     Max Capacity on Top Height: 400 kg
•     Load Center Distance: 600mm
•     Axie Center to Fork Face: 104mm
•     Wheel Base: 707mm
•     Service weight (including Battery): 1090kg

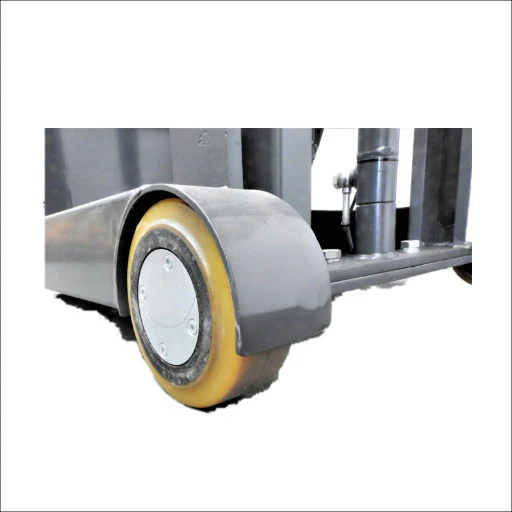

•     Tyre type driving wheels/bearing wheels: Polyurethane
•     Tyre Size, driving wheels (diameter x width) : 250x80mm
•     Tyre Size, bearing wheels (diameter x width) : 178x73mm
•     Wheels number, front/rear(x=driven): 1,2mm
•     Track Width, rear , loading side: 733mm

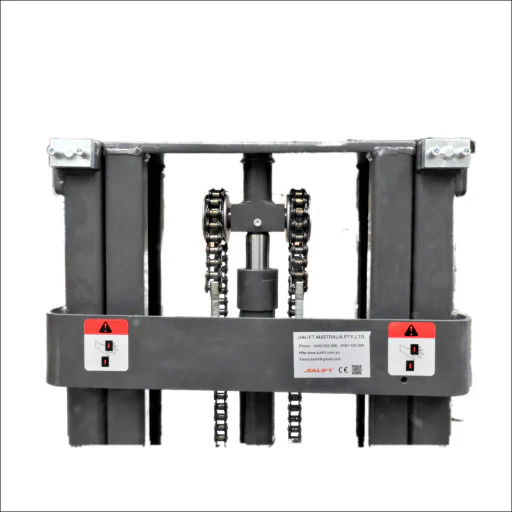

•     Height of mast, lowered: 2060mm
•     Free Lift: 0
•     Lift Height: 3000mm
•     Height of mast, extended: 3550mm

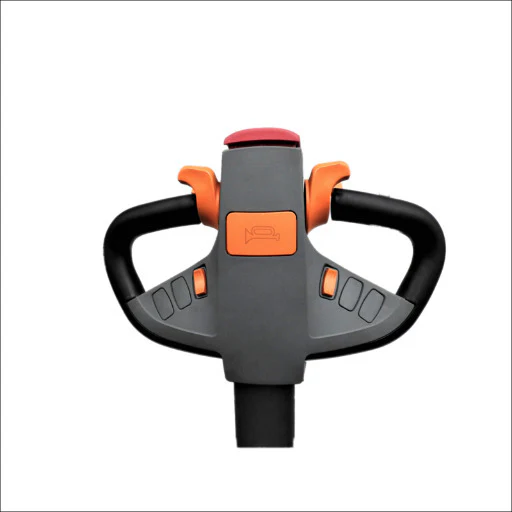

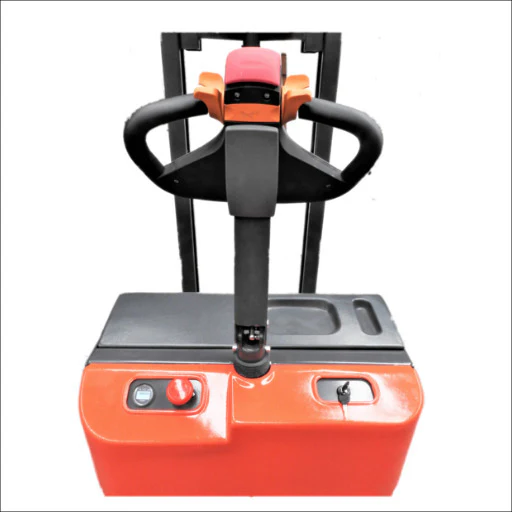

•     Overall height (with handle) 1075/1502
•     Lowered Fork Height: 40mm
•     Overall Length: 2179mm
•     Length to fork face: 1009mm
•     Overall Width: 808mm
•     Fork Dimension: 35/100/1070mm
•     Width of the forks: 220-640mm
•     Min ground clearance, center of wheelbase: 75mm
•     Aisle Width for Pallet 1000 x 1200 crossways: 2365mm
•     Aisle Width for Pallet 1000 x 1200 lengthways: 2474mm
•     Turning Radius: 1085mm
•     Travel Speed, laden/unladen: 4/4.2 km/h
•     Lifting Speed, laden/unladen: 110/130 mm/s
•     Lowering Speed, laden/unladen: 125/115 mm/s
•     Max climbing ability, laden/unladen: 5/8%
•     Service Brake Type: Electromagnetic
•     Builtin Charger: Single Phase
•     Drive Motor Rating (60 minutes rating): 1.5kW
•     Lift Motor rating at S3 15%: 2.2kW
•     Battery Voltage/Rate Capacity: 2x12/100 V/Ah
•     Battery Weight: 2x27kg
•     Type of Drive Unit: AC
•     Sound Pressure Level at the driver's ear: 75 dB(A)
